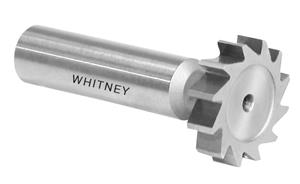

3/4 in. x 5/32 in. Uncoated Solid Carbide Head #506 (8) Keyseat Milling Cutter

  • Item Code: 30338
  • Brand: Whitney Tool
  • Unit Size: 1

Description

Whitney Solid Carbide Keyseat Cutters - Carbide Head on Steel Shank

Straight Tooth

Made in USA

Features Tech Specs

Features

Back To Top
    • Right Hand Cut
    • 1/2" Dia. Shank
    • 2" Under Head Length

Tech Specs

Back To Top
Old Standard # 8
UPC 648672303380
Number of Teeth 10
Material Solid Carbide
Shank Type Straight
Brand Whitney Tool
Metric Diameter 19.05 mm
Width Tolerance +0", -0.0005"
American Standard # 506
OD Tolerance +0.010", +0.015"
Fractional Diameter 3/4"
Shank Length 2
Coating/Finish None
Cut Width 5/32"
Neck Diameter 0.25
Overall Length (Inch) 2-5/32"
Shank Diameter 1/2"
Tooth Configuration Straight
Shank Diameter Tolerance +0", -0.0005"
