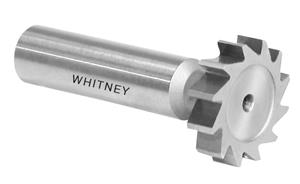

1-1/8 in. x 1/4 in. Uncoated Solid Carbide Head #809 (18) Keyseat Milling Cutter

  • Item Code: 30352-WHITNEY
  • Brand: Whitney Tool
  • Unit Size: 1

Description

Whitney Solid Carbide Keyseat Cutters - Solid Carbide

Straight Tooth

Made in USA

Features Tech Specs

Features

Back To Top
    • Right Hand Cut
    • 1/2" Dia. Shank
    • 2" Under Head Length

Tech Specs

Back To Top
UPC 648672303526
Brand Whitney Tool
Fractional Diameter 1-1/8"
Material C2 Micrograin Carbide
OD Tolerance +0.012", +0.017"
Shank Diameter 1/2"
Tooth Configuration Straight
Metric Diameter 28.58 mm
Number of Teeth 14
Old Standard # 18
Shank Type Straight
American Standard # 809
Cut Width 1/4"
Neck Diameter 0.375
Overall Length (Inch) 2-1/4"
Shank Diameter Tolerance +0", -0.0005"
Width Tolerance +0", -0.0005"
Coating/Finish None
Shank Length 2
