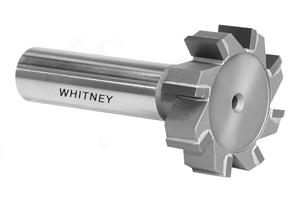

2 in. x 3/16 in. Uncoated Carbide Tipped Deep Slotting Cutter With Side Teeth - 5 deg. Rake For Ferrous Material
- Item Code: 30462-WHITNEY
- Brand: Whitney Tool
- Unit Size: 1
Description
Whitney Carbide Tipped Deep Slotting Cutters
Straight Tooth
Made in USA
Features
Back To Top- Increased Cutting Speed
- Longer Tool Life
Tech Specs
Back To Top| UPC | 648672304622 |
|---|---|
| Neck Diameter | 0.46875 |
| Overall Length (Inch) | 2-3/16" |
| Brand | Whitney Tool |
| Shank Length | 2 |
| Cut Width | 3/16" |
| OD Tolerance | +0.015", +0.020" |
| Shank Diameter | 1/2" |
| Style | 5 deg. Rake for Ferrous Material |
| Coating/Finish | None |
| Fractional Cutting Diameter | 2" |
| Metric Cutting Diameter | 50.80 mm |
| Shank Diameter Tolerance | +0", -0.0005" |
| Shank Type | Straight |
| Material | Carbide Tipped |
| Number of Teeth | 12 |
| Tooth Configuration | Straight |
| Width Tolerance | +0", -0.0005" |
