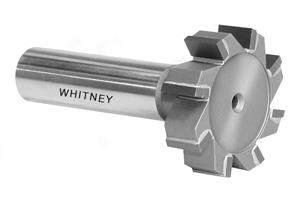

1 in. x 1/4 in. Uncoated Carbide Tipped Deep Slotting Cutter With Side Teeth - 10 deg. Rake For Non-Ferrous Material
- Item Code: 30467-WHITNEY
- Brand: Whitney Tool
- Unit Size: 1
Description
Whitney Carbide Tipped Deep Slotting Cutters
Straight Tooth
Made in USA
Features
Back To Top- Increased Cutting Speed
- Longer Tool Life
Tech Specs
Back To Top| UPC | 648672304677 |
|---|---|
| Material | Carbide Tipped |
| OD Tolerance | +0.015", +0.020" |
| Shank Diameter | 1/2" |
| Overall Length (Inch) | 2-1/4" |
| Brand | Whitney Tool |
| Fractional Cutting Diameter | 1" |
| Metric Cutting Diameter | 25.40 mm |
| Number of Teeth | 4 |
| Shank Length | 2 |
| Width Tolerance | +0", -0.0005" |
| Cut Width | 1/4" |
| Tooth Configuration | Straight |
| Coating/Finish | None |
| Neck Diameter | 0.34375 |
| Shank Diameter Tolerance | +0", -0.0005" |
| Style | 10 deg. Rake for NON-Ferrous Material |
| Shank Type | Straight |
