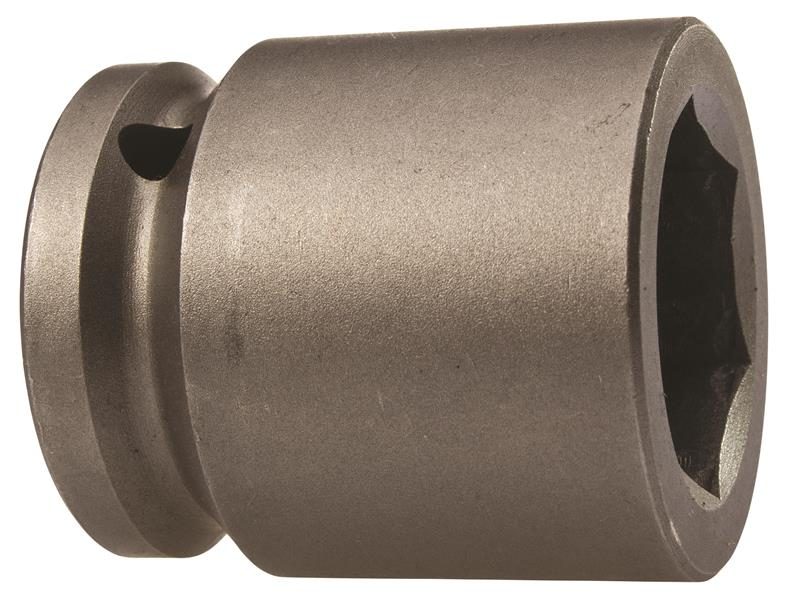

30mm Metric Standard Socket, 3/4 Inch Square Drive
- Item Code: 30MM17
- Brand: Apex
- Unit Size: 1
Description
6 Point & Surface Drive, Standard and Long Length
Features
Back To Top- Impact Rated; Meets or Exceeds Proof Torque Requirement for Impact Standard ASME B107.113
- Made in the USA - Quality and Availability
- High-Carbon Alloy Steel and Proprietary Heat Treat Process Yields Greater Strength and Longer Life
- Cutting-edge Machining Process Allows Apex to Meet or Exceed Licensor Standards, Resulting in Tighter Tolerances and Superior Product Consistency
- Better and More Consistent Fit to Fasteners Leads to Better Torque Transfer
Tech Specs
Back To Top| Diameter Drive End (C) | 44.4 mm |
|---|---|
| Diameter Nose End (B) | 47.6 mm |
| Overall Length (A) | 54 mm |
| Type | Socket |
| Brand | Apex |
| Magnetism | Non-Magnetic |
| Socket Type Length | Standard |
| Tool Type | 3/4” Sq. Dr. Sockets, Metric |
| U-Guard | No |
| Hex Opening | 30 mm |
| Opening Depth (D) | 19.1 mm |
| Opening Modifer | 6 Point Hex |
| Square Drive | 3/4 in |
