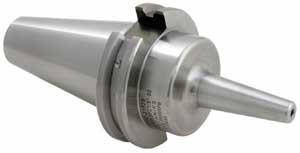

CAT40 x 3/16 Inch Inside Diameter x 3.15 Inch SlimLINE ShrinkFIT Holder
- Item Code: 31538-TECHNIKS
- Brand: Techniks
- Unit Size: 1
Description
Slimline holderes have a smaller nose diameter. Perfect for finish passes where small nose diameter is needed. Techniks ShrinkFIT holders have T.I.R. of 0.0001" or better. Balanced to 25,000 RPM at G2.5 tolerance. Ideal for high speed or high torque machining applications. Each holder is Techniks Certified for accuracy and balance and comes with an individual lab report. Tool life is extended by as much as 700%, stretching your budget farther. Coolant-thru spindle, comes with coolant-thru set screw installed.
Tech Specs
Back To Top| Nose Diameter (mm) | 10.9 |
|---|---|
| Body Diameter (mm) | 17.53 |
| Collet Series | N/A |
| Material | H13 Steel |
| Overall Diameter (in) | 2.5 |
| Shank Range (mm) | Exact Size |
| Type | SlimLINE ShrinkFIT Holder |
| Unit of Tool | Inch |
| Overall Length (in) | 5.84 |
| Shank Size (in) | 0.1875 |
| Style | Single-Ended |
| Nose Diameter (in) | 0.43 |
| Mount | CAT40 |
| Shank Size (mm) | 4.76 |
| Gage Length (mm) | 80 |
| Gage Length-Face Contact (mm) | 76.83 |
| Shank Range (in) | Exact Size |
| Overall Diameter (mm) | 63.5 |
| Body Diameter (in) | 0.69 |
| Gage Length-Face Contact (in) | 3.03 |
| Brand | Techniks |
| Gage Length (in) | 3.15 |
| Overall Length (mm) | 148.25 |
