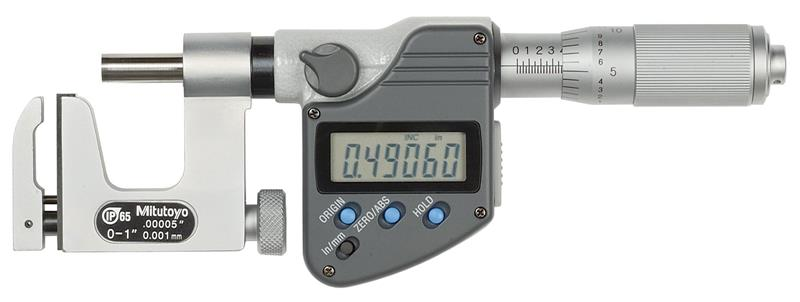

0-1 Inch, 0.00005 Inch, IP65 Uni-Mike Digimatic Interchangeable Anvil Micrometer, With SPC Data Output, Friction Thimble, Flat and Rod Anvils Included

  • Item Code: 317-351-30
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Supplied with Flat anvil and Rod anvil.
    • With special Disk Anvils. Can be used as a height micrometer. The disks have lapped, mirror surface.
    • Measures tubing thickness, shoulder- edge, riviet head height, etc.

Tech Specs

Back To Top
Spindle Lock N
Clutch Friction Thimble
Primary (Outside Diameter) Contact Point Material Carbide
Range 0 - 1 In/0 - 25.4mm
Secondary (Inside Diameter) Contact Point Material Hardened Steel
Case Material Plastic Case
Individual or Set Individual
Primary Measuring Range Upper - Inch 1 In
Resolution or Graduation .00005 In
Spindle Face Flat
Brand Mitutoyo
Case Part Number 04MZA198
Finish Enamel
Mechanical or Digital Digimatic
Primary Measuring Range Lower - Inch 0 In
Primary Measuring Range Upper - Metric 25.4mm
Contact Point Flatness .000024 In
Data Output Cable - 40 inch 05CZA662
Data Output Y
Primary Measuring Range Lower - Metric 0mm
Accuracy ±.0002 In
Contact Point Diameter 6.35mm
Data Output Cable - 80 inch 05CZA663
Thimble Diameter Measurement 18mm
