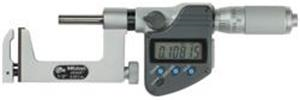

1-2 Inch/25.4-50.8mm, .00005 Inch/0.001mm IP65 Uni-Mike Digimatic Interchangeable Anvil Micrometer

Price Break Details

With SPC Data Output, Friction Thimble, Flat and Rod Anvils Included

Features Tech Specs

Supplied with Flat anvil and Rod anvil.
With special Disk Anvils. Can be used as a height micrometer. The disks have lapped, mirror surface.
Measures tubing thickness, shoulder- edge, riviet head height, etc.

Case Part Number	04MZA198
Primary Measuring Range Upper - Inch	2 In
Range	1 - 2 In /25.4 - 50.8mm
Accuracy	±.0002 In
Case Material	Plastic Case
Spindle Face	Flat
Data Output Cable - 80 inch	05CZA663
Individual or Set	Individual
Resolution or Graduation	.00005 In
Spindle Lock	N
Finish	Enamel
Mechanical or Digital	Digimatic
Primary Measuring Range Upper - Metric	50.8mm
Clutch	Friction Thimble
Contact Point Flatness	.000024 In
Data Output Cable - 40 inch	05CZA662
Secondary (Inside Diameter) Contact Point Material	Hardened Steel
Brand	Mitutoyo
Primary (Outside Diameter) Contact Point Material	Carbide
Primary Measuring Range Lower - Inch	1 In
Data Output	Y
Primary Measuring Range Lower - Metric	25.4mm
Contact Point Diameter	6.35mm
Thimble Diameter Measurement	18mm
