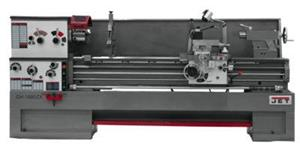

GH-1880ZX with ACU-RITE 200S DRO
- Item Code: 321487
- Brand: Jet
- Unit Size: 1
Description
The ZX-Series Large Spindle Bore Lathe provides power, precision, efficiency and reliability to your metal shop. A one piece cast iron base absorbs vibrations during operation to allow heavier cuts and ensure accuracy, while the Universal Gearbox eliminates the need to change gears. Features you've come to expect in a JET Lathe that is backed by the industry-leading JET Two Year Warranty.
Features
Back To Top- 3-1/8�� bore spindle is supported by two tapered and one ball bearings
- Chrome molybdenum headstock gears are hardened, ground and shaved
- Universal gearbox allows inch, metric, diametral and module pitch threads, no change gears required
- Carriage features one-shot lubrication and Turcite-B on bed sliding surfaces
- T-slotted compound slide featuring four-way tool post
- One piece cast iron base absorbs vibration allowing heavier cuts
- High quality ANSI Class 50 wear resistant cast iron bed ways are
- Removable gap allows large diameter work
- Five position automatic carriage stop increases productivity
- Meehanite Castings
Tech Specs
Back To Top| UPC | 662755515156 |
|---|---|
| Country of Origin | CN |
| Number of Inch Threads | 61 |
| Spindle Bore (In.) | 3-1/8 |
| Motor (HP) | 7-1/2 HP, 230/460, 3 Ph |
| Range of Longitudinal Feeds (IPR) | .0015 - .0913 |
| Spindle Mount | D1-8 |
| Spindle Taper with Sleeve | MT-7 (MT-5) |
| Digital Readout | ACU-RITE 200S |
| Range of Inch Threads (TPI) | 1-5/8 - 72 |
| Swing Through Gap (In.) | 27-1/2 |
| Distance Between Centers (In.) | 80 |
| Drive | SV_1375591258789 |
| Length of Gap (In.) | 12 |
| Number of Longitudinal and Cross Feed Rates | 122 |
| Prewired (V.) | 230 |
| Range of Spindle Speeds (RPM) | 25 - 1,800 |
| Tailstock Spindle Travel (In.) | 5 |
| Max Tool Size (In.) | 1 x 1 |
| Overall Dimensions (L x W x H) (In.) | 136 x 44 x 66 |
| Range of Cross Feeds (IPR) | .0006 - .0365 |
| Range of Metric Threads | .05 - 20 |
| Size | 18 x 80 |
| Style (Type) | Engine - Large Spindle Bore |
| Width of Bed (In.) | 13-1/8 |
| Carriage Travel (In.) | 74-5/16 |
| Cross Slide Travel (In.) | 9 |
| Number of Metric Threads | 24 |
| Swing Over Cross Slide (In.) | 11 |
| Weight (Lbs.) | 6,590 |
| Follow Rest Capacity (In.) | 1/2 - 3-1/2 |
| Gross Weight (lbs.) | 7100 |
| Number of Spindle Speeds | 12 |
| Taper in Tailstock Spindle | MT-5 |
| Brand | Jet |
| Compound Slide Travel (In.) | 5-1/8 |
| Model Number | GH-1880ZX |
| Steady Rest Capacity (In.) | 3/8 - 7-3/4 |
| Swing Over Bed (In.) | 18 |
