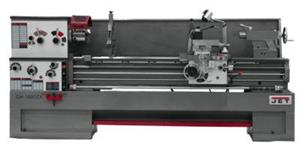

GH-1880ZX with Newall DP700 DRO
- Item Code: 321488
- Brand: Jet
- Unit Size: 1
Description
The ZX-Series Large Spindle Bore Lathe provides power, precision, efficiency and reliability to your metal shop. A one piece cast iron base absorbs vibrations during operation to allow heavier cuts and ensure accuracy, while the Universal Gearbox eliminates the need to change gears. Features you've come to expect in a JET Lathe that is backed by the industry-leading JET Two Year Warranty.
Features
Back To Top- 3-1/8�� bore spindle is supported by two tapered and one ball bearings
- Chrome molybdenum headstock gears are hardened, ground and shaved
- Universal gearbox allows inch, metric, diametral and module pitch threads, no change gears required
- Carriage features one-shot lubrication and Turcite-B on bed sliding surfaces
- T-slotted compound slide featuring four-way tool post
- One piece cast iron base absorbs vibration allowing heavier cuts
- High quality ANSI Class 50 wear resistant cast iron bed ways are
- Removable gap allows large diameter work
- Five position automatic carriage stop increases productivity
- Meehanite Castings
Tech Specs
Back To Top| Gross Weight (lbs.) | 7100 |
|---|---|
| UPC | 662755515163 |
| Model Number | GH-1880ZX |
| Swing Over Cross Slide (In.) | 11 |
| Taper in Tailstock Spindle | MT-5 |
| Brand | Jet |
| Digital Readout | Newall DP700 |
| Spindle Mount | D1-8 |
| Drive | SV_1375591258789 |
| Motor (HP) | 7-1/2 HP, 230/460, 3 Ph |
| Number of Inch Threads | 61 |
| Range of Inch Threads (TPI) | 1-5/8 - 72 |
| Swing Through Gap (In.) | 27-1/2 |
| Compound Slide Travel (In.) | 5-1/8 |
| Number of Spindle Speeds | 12 |
| Overall Dimensions (L x W x H) (In.) | 136 x 44 x 66 |
| Range of Cross Feeds (IPR) | .0006 - .0365 |
| Range of Longitudinal Feeds (IPR) | .0015 - .0913 |
| Range of Metric Threads | .05 - 20 |
| Steady Rest Capacity (In.) | 3/8 - 7-3/4 |
| Carriage Travel (In.) | 74-5/16 |
| Cross Slide Travel (In.) | 9 |
| Number of Metric Threads | 24 |
| Tailstock Spindle Travel (In.) | 5 |
| Follow Rest Capacity (In.) | 1/2 - 3-1/2 |
| Max Tool Size (In.) | 1 x 1 |
| Size | 18 x 80 |
| Style (Type) | Engine - Large Spindle Bore |
| Swing Over Bed (In.) | 18 |
| Width of Bed (In.) | 13-1/8 |
| Country of Origin | CN |
| Distance Between Centers (In.) | 80 |
| Length of Gap (In.) | 12 |
| Prewired (V.) | 230 |
| Spindle Bore (In.) | 3-1/8 |
| Weight (Lbs.) | 6,590 |
| Number of Longitudinal and Cross Feed Rates | 122 |
| Range of Spindle Speeds (RPM) | 25 - 1,800 |
| Spindle Taper with Sleeve | MT-7 (MT-5) |
