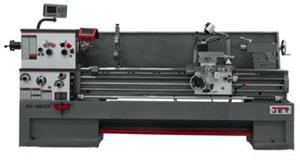

GH-1880ZX with ACU-RITE 200S DRO with Collet Closer
- Item Code: 321492
- Brand: Jet
- Unit Size: 1
Description
The ZX-Series Large Spindle Bore Lathe provides power, precision, efficiency and reliability to your metal shop. A one piece cast iron base absorbs vibrations during operation to allow heavier cuts and ensure accuracy, while the Universal Gearbox eliminates the need to change gears. Features you've come to expect in a JET Lathe that is backed by the industry-leading JET Two Year Warranty.
Features
Back To Top- 3-1/8�� bore spindle is supported by two tapered and one ball bearings
- Chrome molybdenum headstock gears are hardened, ground and shaved
- Universal gearbox allows inch, metric, diametral and module pitch threads, no change gears required
- Carriage features one-shot lubrication and Turcite-B on bed sliding surfaces
- T-slotted compound slide featuring four-way tool post
- One piece cast iron base absorbs vibration allowing heavier cuts
- High quality ANSI Class 50 wear resistant cast iron bed ways are
- Removable gap allows large diameter work
- Five position automatic carriage stop increases productivity
- Meehanite Castings
Tech Specs
Back To Top| Gross Weight (lbs.) | 6625 |
|---|---|
| UPC | 662755918278 |
| Number of Metric Threads | 24 |
| Spindle Mount | D1-8 |
| Swing Over Cross Slide (In.) | 11 |
| Accessory 2 | Collet Closer |
| Drive | SV_1375591258789 |
| Motor (HP) | 7-1/2 HP, 230/460, 3 Ph |
| Number of Inch Threads | 61 |
| Number of Spindle Speeds | 12 |
| Range of Inch Threads (TPI) | 1-5/8 - 72 |
| Range of Spindle Speeds (RPM) | 25 - 1,800 |
| Swing Through Gap (In.) | 27-1/2 |
| Taper in Tailstock Spindle | MT-5 |
| Brand | Jet |
| Digital Readout | ACU-RITE 200S |
| Distance Between Centers (In.) | 80 |
| Compound Slide Travel (In.) | 5-1/8 |
| Max Tool Size (In.) | 1 x 1 |
| Overall Dimensions (L x W x H) (In.) | 136 x 44 x 66 |
| Range of Cross Feeds (IPR) | .0006 - .0365 |
| Range of Longitudinal Feeds (IPR) | .0015 - .0913 |
| Range of Metric Threads | .05 - 20 |
| Steady Rest Capacity (In.) | 3/8 - 7-3/4 |
| Cross Slide Travel (In.) | 9 |
| Model Number | GH-1880ZX |
| Number of Longitudinal and Cross Feed Rates | 122 |
| Prewired (V.) | 230 |
| Tailstock Spindle Travel (In.) | 5 |
| Follow Rest Capacity (In.) | 1/2 - 3-1/2 |
| Spindle Bore (In.) | 3-1/8 |
| Style (Type) | Engine - Large Spindle Bore |
| Swing Over Bed (In.) | 18 |
| Width of Bed (In.) | 13-1/8 |
| Spindle Taper with Sleeve | MT-7 (MT-5) |
| Carriage Travel (In.) | 74-5/16 |
| Country of Origin | CN |
| Length of Gap (In.) | 12 |
| Size | 18 x 80 |
| Weight (Lbs.) | 6,590 |
