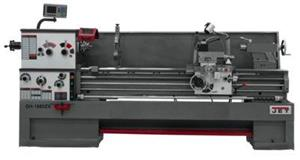

GH-1880ZX with ACU-RITE200S DRO with Taper Attachment and Collet Closer
- Item Code: 321493
- Brand: Jet
- Unit Size: 1
Description
The ZX-Series Large Spindle Bore Lathe provides power, precision, efficiency and reliability to your metal shop. A one piece cast iron base absorbs vibrations during operation to allow heavier cuts and ensure accuracy, while the Universal Gearbox eliminates the need to change gears. Features you've come to expect in a JET Lathe that is backed by the industry-leading JET Two Year Warranty.
Features
Back To Top- 3-1/8�� bore spindle is supported by two tapered and one ball bearings
- Chrome molybdenum headstock gears are hardened, ground and shaved
- Universal gearbox allows inch, metric, diametral and module pitch threads, no change gears required
- Carriage features one-shot lubrication and Turcite-B on bed sliding surfaces
- T-slotted compound slide featuring four-way tool post
- One piece cast iron base absorbs vibration allowing heavier cuts
- High quality ANSI Class 50 wear resistant cast iron bed ways are
- Removable gap allows large diameter work
- Five position automatic carriage stop increases productivity
- Meehanite Castings
Tech Specs
Back To Top| UPC | 662755918285 |
|---|---|
| Motor (HP) | 7-1/2 HP, 230/460, 3 Ph |
| Size | 18 x 80 |
| Width of Bed (In.) | 13-1/8 |
| Accessory 2 | Collet Closer |
| Country of Origin | CN |
| Distance Between Centers (In.) | 80 |
| Number of Spindle Speeds | 12 |
| Taper in Tailstock Spindle | MT-5 |
| Brand | Jet |
| Compound Slide Travel (In.) | 5-1/8 |
| Drive | SV_1375591258789 |
| Number of Inch Threads | 61 |
| Range of Spindle Speeds (RPM) | 25 - 1,800 |
| Steady Rest Capacity (In.) | 3/8 - 7-3/4 |
| Carriage Travel (In.) | 74-5/16 |
| Digital Readout | ACU-RITE 200S |
| Spindle Taper with Sleeve | MT-7 (MT-5) |
| Weight (Lbs.) | 6,590 |
| Follow Rest Capacity (In.) | 1/2 - 3-1/2 |
| Spindle Bore (In.) | 3-1/8 |
| Swing Over Bed (In.) | 18 |
| Length of Gap (In.) | 12 |
| Model Number | GH-1880ZX |
| Number of Longitudinal and Cross Feed Rates | 122 |
| Prewired (V.) | 230 |
| Tailstock Spindle Travel (In.) | 5 |
| Accessory 1 | Taper Attachment |
| Cross Slide Travel (In.) | 9 |
| Max Tool Size (In.) | 1 x 1 |
| Number of Metric Threads | 24 |
| Range of Longitudinal Feeds (IPR) | .0015 - .0913 |
| Spindle Mount | D1-8 |
| Style (Type) | Engine - Large Spindle Bore |
| Gross Weight (lbs.) | 6625 |
| Overall Dimensions (L x W x H) (In.) | 136 x 44 x 66 |
| Range of Cross Feeds (IPR) | .0006 - .0365 |
| Range of Inch Threads (TPI) | 1-5/8 - 72 |
| Range of Metric Threads | .05 - 20 |
| Swing Over Cross Slide (In.) | 11 |
| Swing Through Gap (In.) | 27-1/2 |
