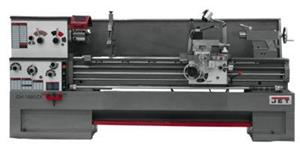

GH-1880ZX with ACU-RITE 200S DRO with Taper Attachment
- Item Code: 321560
- Brand: Jet
- Unit Size: 1
Description
The ZX-Series Large Spindle Bore Lathe provides power, precision, efficiency and reliability to your metal shop. A one piece cast iron base absorbs vibrations during operation to allow heavier cuts and ensure accuracy, while the Universal Gearbox eliminates the need to change gears. Features you've come to expect in a JET Lathe that is backed by the industry-leading JET Two Year Warranty.
Features
Back To Top- 3-1/8�� bore spindle is supported by two tapered and one ball bearings
- Chrome molybdenum headstock gears are hardened, ground and shaved
- Universal gearbox allows inch, metric, diametral and module pitch threads, no change gears required
- Carriage features one-shot lubrication and Turcite-B on bed sliding surfaces
- T-slotted compound slide featuring four-way tool post
- One piece cast iron base absorbs vibration allowing heavier cuts
- High quality ANSI Class 50 wear resistant cast iron bed ways are
- Removable gap allows large diameter work
- Five position automatic carriage stop increases productivity
- Meehanite Castings
Tech Specs
Back To Top| UPC | 662755515484 |
|---|---|
| Compound Slide Travel (In.) | 5-1/8 |
| Model Number | GH-1880ZX |
| Number of Spindle Speeds | 12 |
| Overall Dimensions (L x W x H) (In.) | 136 x 44 x 66 |
| Range of Cross Feeds (IPR) | .0006 - .0365 |
| Range of Metric Threads | .05 - 20 |
| Steady Rest Capacity (In.) | 3/8 - 7-3/4 |
| Accessory 1 | Taper Attachment |
| Carriage Travel (In.) | 74-5/16 |
| Cross Slide Travel (In.) | 9 |
| Max Tool Size (In.) | 1 x 1 |
| Number of Metric Threads | 24 |
| Size | 18 x 80 |
| Style (Type) | Engine - Large Spindle Bore |
| Swing Over Bed (In.) | 18 |
| Tailstock Spindle Travel (In.) | 5 |
| Width of Bed (In.) | 13-1/8 |
| Follow Rest Capacity (In.) | 1/2 - 3-1/2 |
| Gross Weight (lbs.) | 7100 |
| Range of Longitudinal Feeds (IPR) | .0015 - .0913 |
| Swing Over Cross Slide (In.) | 11 |
| Taper in Tailstock Spindle | MT-5 |
| Digital Readout | ACU-RITE 200S |
| Number of Inch Threads | 61 |
| Range of Inch Threads (TPI) | 1-5/8 - 72 |
| Spindle Mount | D1-8 |
| Swing Through Gap (In.) | 27-1/2 |
| Brand | Jet |
| Drive | SV_1375591258789 |
| Motor (HP) | 7-1/2 HP, 230/460, 3 Ph |
| Country of Origin | CN |
| Distance Between Centers (In.) | 80 |
| Length of Gap (In.) | 12 |
| Prewired (V.) | 230 |
| Spindle Bore (In.) | 3-1/8 |
| Weight (Lbs.) | 6,590 |
| Number of Longitudinal and Cross Feed Rates | 122 |
| Range of Spindle Speeds (RPM) | 25 - 1,800 |
| Spindle Taper with Sleeve | MT-7 (MT-5) |
