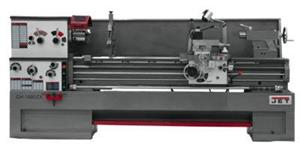

GH-1880ZX with Newall DP700 DRO with Taper Attachment
- Item Code: 321571
- Brand: Jet
- Unit Size: 1
Description
The ZX-Series Large Spindle Bore Lathe provides power, precision, efficiency and reliability to your metal shop. A one piece cast iron base absorbs vibrations during operation to allow heavier cuts and ensure accuracy, while the Universal Gearbox eliminates the need to change gears. Features you've come to expect in a JET Lathe that is backed by the industry-leading JET Two Year Warranty.
Features
Back To Top- 3-1/8�� bore spindle is supported by two tapered and one ball bearings
- Chrome molybdenum headstock gears are hardened, ground and shaved
- Universal gearbox allows inch, metric, diametral and module pitch threads, no change gears required
- Carriage features one-shot lubrication and Turcite-B on bed sliding surfaces
- T-slotted compound slide featuring four-way tool post
- One piece cast iron base absorbs vibration allowing heavier cuts
- High quality ANSI Class 50 wear resistant cast iron bed ways are
- Removable gap allows large diameter work
- Five position automatic carriage stop increases productivity
- Meehanite Castings
Tech Specs
Back To Top| UPC | 662755520983 |
|---|---|
| Brand | Jet |
| Model Number | GH-1880ZX |
| Taper in Tailstock Spindle | MT-5 |
| Digital Readout | Newall DP700 |
| Range of Longitudinal Feeds (IPR) | .0015 - .0913 |
| Spindle Mount | D1-8 |
| Motor (HP) | 7-1/2 HP, 230/460, 3 Ph |
| Range of Inch Threads (TPI) | 1-5/8 - 72 |
| Spindle Taper with Sleeve | MT-7 (MT-5) |
| Swing Through Gap (In.) | 27-1/2 |
| Compound Slide Travel (In.) | 5-1/8 |
| Follow Rest Capacity (In.) | 1/2 - 3-1/2 |
| Number of Spindle Speeds | 12 |
| Steady Rest Capacity (In.) | 3/8 - 7-3/4 |
| Swing Over Bed (In.) | 18 |
| Carriage Travel (In.) | 74-5/16 |
| Cross Slide Travel (In.) | 9 |
| Number of Metric Threads | 24 |
| Swing Over Cross Slide (In.) | 11 |
| Weight (Lbs.) | 6,590 |
| Accessory 1 | Taper Attachment |
| Max Tool Size (In.) | 1 x 1 |
| Overall Dimensions (L x W x H) (In.) | 136 x 44 x 66 |
| Range of Cross Feeds (IPR) | .0006 - .0365 |
| Range of Metric Threads | .05 - 20 |
| Size | 18 x 80 |
| Style (Type) | Engine - Large Spindle Bore |
| Width of Bed (In.) | 13-1/8 |
| Country of Origin | CN |
| Distance Between Centers (In.) | 80 |
| Gross Weight (lbs.) | 6942 |
| Length of Gap (In.) | 12 |
| Prewired (V.) | 230 |
| Spindle Bore (In.) | 3-1/8 |
| Tailstock Spindle Travel (In.) | 5 |
| Drive | SV_1375591258789 |
| Number of Inch Threads | 61 |
| Number of Longitudinal and Cross Feed Rates | 122 |
| Range of Spindle Speeds (RPM) | 25 - 1,800 |
