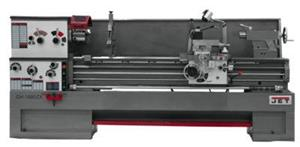

GH-1880ZX with ACU-RITE 300S DRO with Taper Attachment
- Item Code: 321597
- Brand: Jet
- Unit Size: 1
Description
The ZX-Series Large Spindle Bore Lathe provides power, precision, efficiency and reliability to your metal shop. A one piece cast iron base absorbs vibrations during operation to allow heavier cuts and ensure accuracy, while the Universal Gearbox eliminates the need to change gears. Features you've come to expect in a JET Lathe that is backed by the industry-leading JET Two Year Warranty.
Features
Back To Top- 3-1/8�� bore spindle is supported by two tapered and one ball bearings
- Chrome molybdenum headstock gears are hardened, ground and shaved
- Universal gearbox allows inch, metric, diametral and module pitch threads, no change gears required
- Carriage features one-shot lubrication and Turcite-B on bed sliding surfaces
- T-slotted compound slide featuring four-way tool post
- One piece cast iron base absorbs vibration allowing heavier cuts
- High quality ANSI Class 50 wear resistant cast iron bed ways are
- Removable gap allows large diameter work
- Five position automatic carriage stop increases productivity
- Meehanite Castings
Tech Specs
Back To Top| UPC | 731325173291 |
|---|---|
| Follow Rest Capacity (In.) | 1/2 - 3-1/2 |
| Size | 18 x 80 |
| Swing Over Bed (In.) | 18 |
| Width of Bed (In.) | 13-1/8 |
| Gross Weight (lbs.) | 6700 |
| Length of Gap (In.) | 12 |
| Prewired (V.) | 230 |
| Range of Longitudinal Feeds (IPR) | .0015 - .0913 |
| Spindle Bore (In.) | 3-1/8 |
| Model Number | GH-1880ZX |
| Number of Longitudinal and Cross Feed Rates | 122 |
| Spindle Taper with Sleeve | MT-7 (MT-5) |
| Brand | Jet |
| Carriage Travel (In.) | 74-5/16 |
| Digital Readout | ACU-RITE 300S |
| Motor (HP) | 7-1/2 HP, 230/460, 3 Ph |
| Compound Slide Travel (In.) | 5-1/8 |
| Country of Origin | CN |
| Number of Spindle Speeds | 12 |
| Overall Dimensions (L x W x H) (In.) | 136 x 44 x 66 |
| Range of Cross Feeds (IPR) | .0006 - .0365 |
| Range of Metric Threads | .05 - 20 |
| Steady Rest Capacity (In.) | 3/8 - 7-3/4 |
| Distance Between Centers (In.) | 80 |
| Range of Spindle Speeds (RPM) | 25 - 1,800 |
| Swing Over Cross Slide (In.) | 11 |
| Taper in Tailstock Spindle | MT-5 |
| Weight (Lbs.) | 6,590 |
| Accessory 1 | Taper Attachment |
| Cross Slide Travel (In.) | 9 |
| Max Tool Size (In.) | 1 x 1 |
| Number of Metric Threads | 24 |
| Spindle Mount | D1-8 |
| Style (Type) | Engine - Large Spindle Bore |
| Tailstock Spindle Travel (In.) | 5 |
| Drive | SV_1375591258789 |
| Number of Inch Threads | 61 |
| Range of Inch Threads (TPI) | 1-5/8 - 72 |
| Swing Through Gap (In.) | 27-1/2 |
