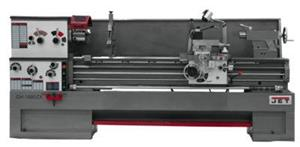

3-1/8 Inch, GH-1880ZX, Spindle Bore Geared Head Lathe
- Item Code: 321970
- Brand: Jet
- Unit Size: 1
Description
The ZX-Series Large Spindle Bore Lathe provides power, precision, efficiency and reliability to your metal shop. A one piece cast iron base absorbs vibrations during operation to allow heavier cuts and ensure accuracy, while the Universal Gearbox eliminates the need to change gears. Features you've come to expect in a JET Lathe that is backed by the industry-leading JET Two Year Warranty.
Features
Back To Top- 3-1/8�� bore spindle is supported by two tapered and one ball bearings
- Chrome molybdenum headstock gears are hardened, ground and shaved
- Universal gearbox allows inch, metric, diametral and module pitch threads, no change gears required
- Carriage features one-shot lubrication and Turcite-B on bed sliding surfaces
- T-slotted compound slide featuring four-way tool post
- One piece cast iron base absorbs vibration allowing heavier cuts
- High quality ANSI Class 50 wear resistant cast iron bed ways are
- Removable gap allows large diameter work
- Five position automatic carriage stop increases productivity
- Meehanite Castings
Tech Specs
Back To Top| Model Number | GH-1880ZX |
|---|---|
| Size | 18 x 80 |
| Style (Type) | Engine - Large Spindle Bore |
| UPC | 662755165108 |
| Cross Slide Travel (In.) | 9 |
| Gross Weight (lbs.) | 6790 |
| Number of Inch Threads | 61 |
| Number of Longitudinal and Cross Feed Rates | 122 |
| Number of Metric Threads | 24 |
| Range of Inch Threads (TPI) | 1-5/8 - 72 |
| Swing Through Gap (In.) | 27-1/2 |
| Tailstock Spindle Travel (In.) | 5 |
| Compound Slide Travel (In.) | 5-1/8 |
| Country of Origin | CN |
| Distance Between Centers (In.) | 80 |
| Overall Dimensions (L x W x H) (In.) | 136 x 44 x 66 |
| Range of Cross Feeds (IPR) | .0006 - .0365 |
| Range of Metric Threads | .05 - 20 |
| Steady Rest Capacity (In.) | 3/8 - 7-3/4 |
| Swing Over Cross Slide (In.) | 11 |
| Weight (Lbs.) | 6,590 |
| Number of Spindle Speeds | 12 |
| Taper in Tailstock Spindle | MT-5 |
| Drive | SV_1375591258789 |
| Max Tool Size (In.) | 1 x 1 |
| Range of Spindle Speeds (RPM) | 25 - 1,800 |
| Spindle Bore (In.) | 3-1/8 |
| Length of Gap (In.) | 12 |
| Prewired (V.) | 230 |
| Spindle Mount | D1-8 |
| Spindle Taper with Sleeve | MT-7 (MT-5) |
| Range of Longitudinal Feeds (IPR) | .0015 - .0913 |
| Brand | Jet |
| Carriage Travel (In.) | 74-5/16 |
| Swing Over Bed (In.) | 18 |
| Width of Bed (In.) | 13-1/8 |
| Follow Rest Capacity (In.) | 1/2 - 3-1/2 |
| Motor (HP) | 7-1/2 HP, 230/460, 3 Ph |
