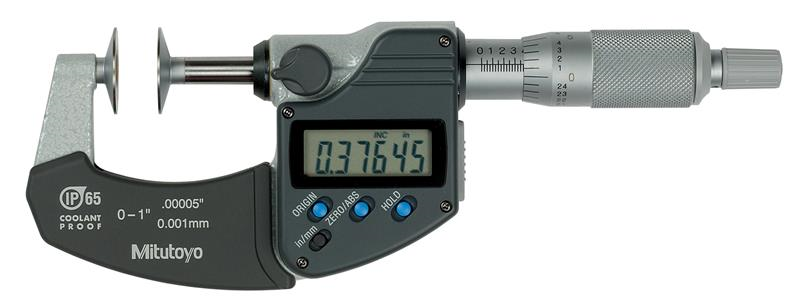

0-1 Inch, 0.00005 Inch, IP65 Digimatic Disk Micrometer, .787 Inch/20mm Diameter .028 Inch/0.7mm Edge Thickness Disk, With SPC Data Output, Ratchet Stop

  • Item Code: 323-350-30
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • With ratchet stop for constant force.
    • SPC output
    • Supplied in a fitted plastic case.

Tech Specs

Back To Top
Case Part Number 475425
Primary Measuring Range Upper - Metric 25.4mm
Accuracy ±.0002 In
Data Output Cable - 80 inch 05CZA663
Spindle Face Disk
Thimble Diameter Measurement 18mm
Primary Measuring Range Upper - Inch 1 In
Contact Point Diameter .787 In
Data Output Y
Data Output Cable - 40 inch 05CZA662
Primary (Outside Diameter) Contact Point Material Hardened Steel
Primary Measuring Range Lower - Metric 0mm
Brand Mitutoyo
Finish Enamel
Individual or Set Individual
Mechanical or Digital Digimatic
Parallelism .00016 In
Range 0 - 1 In/0 - 25.4mm
Case Material Plastic Case
Clutch Ratchet Stop
Primary Measuring Range Lower - Inch 0 In
Resolution or Graduation .00005 In
Contact Point Flatness .00004 In
IP Rating IP65
Spindle Lock N
