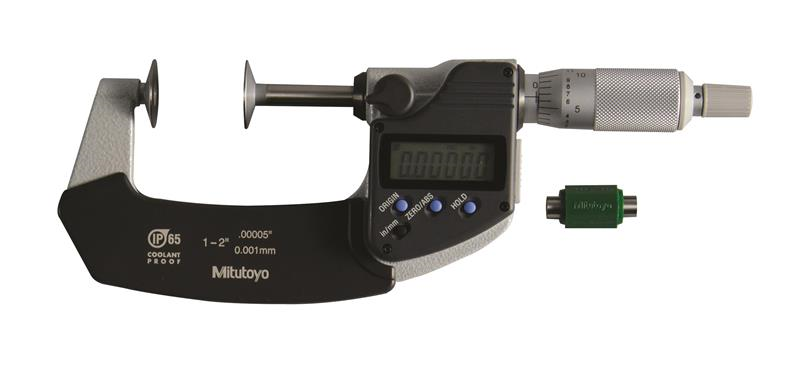

1 Inch - 2 Inch, 0.00005 Inch, IP65 Digimatic Disk Micrometer, .787 Inch/20mm Diameter .028 Inch/0.7mm Edge Thickness Disk, With SPC Data Output, Ratchet Stop, With Standard

  • Item Code: 323-351-30
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • With ratchet stop for constant force.
    • SPC output
    • Supplied in a fitted plastic case.

Tech Specs

Back To Top
Contact Point Flatness .00004 In
Primary (Outside Diameter) Contact Point Material Hardened Steel
Range 1 - 2 In/25.4 - 50.8mm
Brand Mitutoyo
Primary Measuring Range Lower - Metric 25.4mm
Thimble Diameter Measurement 18mm
Accuracy ±.0002 In
Case Material Plastic Case
Contact Point Diameter .787 In
Data Output Cable - 80 inch 05CZA663
Primary Measuring Range Upper - Inch 2 In
Resolution or Graduation .00005 In
Spindle Face Disk
Clutch Ratchet Stop
Primary Measuring Range Lower - Inch 1 In
Primary Measuring Range Upper - Metric 50.8mm
Data Output Y
IP Rating IP65
Spindle Lock N
Finish Enamel
Individual or Set Individual
Parallelism .00016 In
Case Part Number 475425
Data Output Cable - 40 inch 05CZA662
Mechanical or Digital Digimatic
