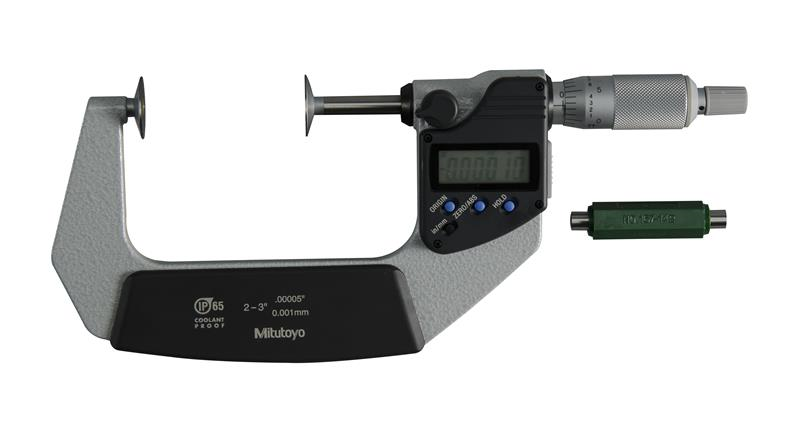

2 Inch - 3 Inch, 0.00005 Inch, IP65 Digimatic Disk Micrometer, .787 Inch/20mm Diameter .028 Inch/0.7mm Edge Thickness Disk, With SPC Data Output, Ratchet Stop, With Standard

  • Item Code: 323-352-30
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • With ratchet stop for constant force.
    • SPC output
    • Supplied in a fitted plastic case.

Tech Specs

Back To Top
Range 2 - 3 In/50 - 76.2mm
Primary (Outside Diameter) Contact Point Material Hardened Steel
Brand Mitutoyo
Individual or Set Individual
Mechanical or Digital Digimatic
Case Part Number 475425
Contact Point Diameter .787 In
Data Output Y
Data Output Cable - 40 inch 05CZA662
Parallelism .00016 In
Primary Measuring Range Lower - Metric 50.8mm
Primary Measuring Range Lower - Inch 2 In
Contact Point Flatness .00004 In
Data Output Cable - 80 inch 05CZA663
Finish Enamel
Primary Measuring Range Upper - Inch 3 In
Spindle Face Disk
Thimble Diameter Measurement 18mm
Accuracy ±.0003 In
IP Rating IP65
Primary Measuring Range Upper - Metric 76.2mm
Spindle Lock N
Case Material Plastic Case
Clutch Ratchet Stop
Resolution or Graduation .00005 In
