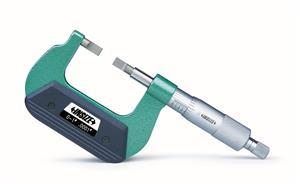

0 Inch - 1 Inch, Graduation 0.0001 Inch Blade Micrometer

  • Item Code: 3232-1
  • Brand: Insize
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Measure the groove diameter of shafts and keyways.
    • Non-rotating spindle. Ratchet stop.
    • Supplied with setting standards (except 0-1").

Tech Specs

Back To Top
Anvil Type Blade
Data Output Non
Maximum Measurement 1 in
Head Diameter 18 mm
Brand Insize
Blade Depth 6.5 mm
Digital Counter None
Type Blade
Measurement Type Mechanical
Spindle Type Flat
Blade Thickness 0.75 mm
Minimum Measurement 0 in
Rotating Spindle Non-Rotating
Thimble Type Ratchet Stop
Graduation 0.0001 in
