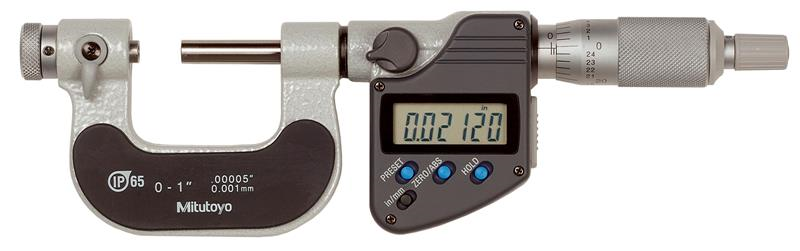

0-1 Inch, 0.00005 Inch, IP65 Digimatic Screw Thread Micrometer, With SPC Data Output, Ratchet Stop, Optional Anvils Available

  • Item Code: 326-351-30
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • With ratchet stop for constant force.
    • SPC output
    • IP65 water/dust protection.

Tech Specs

Back To Top
Case Part Number 475472
Case Material Plastic Case
Clutch Ratchet Stop
Spindle Face Flat
Range 0 - 1 In/0 - 25.4mm
IP Rating IP65
Primary Measuring Range Lower - Inch 0 In
Resolution or Graduation .00005 In
Spindle Lock N
Accuracy ±.0002 In
Contact Point Diameter 6.35mm
Data Output Cable - 40 inch 05CZA662
Data Output Cable - 80 inch 05CZA663
Thimble Diameter Measurement 18mm
Data Output Y
Finish Enamel
Individual or Set Individual
Primary Measuring Range Upper - Inch 1 In
Brand Mitutoyo
Mechanical or Digital Digimatic
