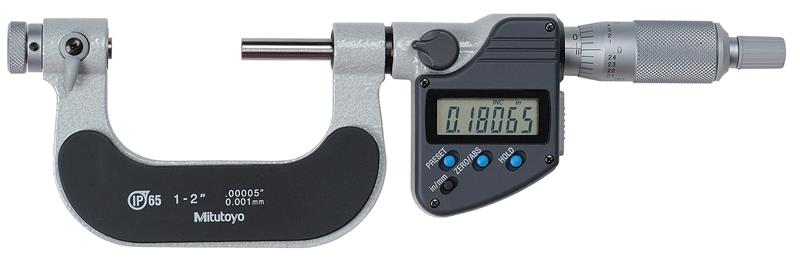

1-2 Inch/25.4-50.8mm, .00005 Inch/0.001mm IP65 Digimatic Screw Thread Micrometer, With SPC Data Output, Ratchet Stop

  • Item Code: 326-352-30
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Optional Anvils Available

Features Tech Specs

Features

Back To Top
    • With ratchet stop for constant force.
    • SPC output
    • IP65 water/dust protection.

Tech Specs

Back To Top
Data Output Y
Data Output Cable - 80 inch 05CZA663
IP Rating IP65
Spindle Lock N
Thimble Diameter Measurement 18mm
Accuracy ±.0002 In
Contact Point Diameter 6.35mm
Primary Measuring Range Upper - Inch 2 In
Case Part Number 475472
Resolution or Graduation .00005 In
Brand Mitutoyo
Clutch Ratchet Stop
Case Material Plastic Case
Spindle Face Flat
Primary Measuring Range Lower - Inch 1 In
Data Output Cable - 40 inch 05CZA662
Mechanical or Digital Digimatic
Range 1 - 2 In / 25.4 - 50.8mm
Finish Enamel
Individual or Set Individual
