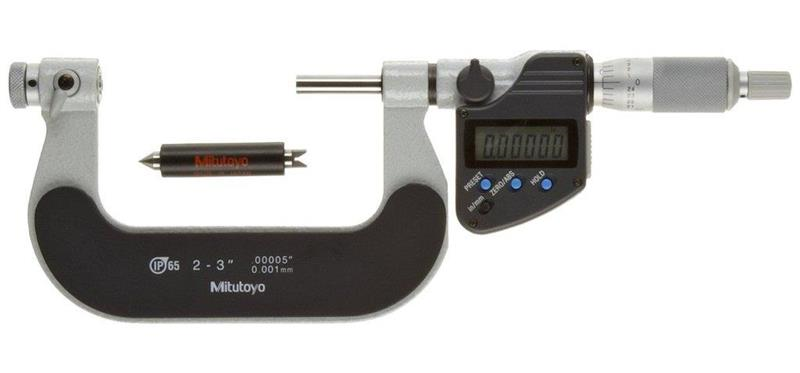

2 Inch - 3 Inch, 0.00005 Inch, IP65 Digimatic Screw Thread Micrometer, With SPC Data Output, Ratchet Stop, With Standard, Optional Anvils Available

  • Item Code: 326-353-30
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • With ratchet stop for constant force.
    • SPC output
    • IP65 water/dust protection.

Tech Specs

Back To Top
Accuracy ±.0002 In
Range 2 - 3 In / 50.8 - 76.2mm
Clutch Ratchet Stop
Primary Measuring Range Lower - Inch 2 In
Case Part Number 475472
Contact Point Diameter 6.35mm
Primary Measuring Range Upper - Inch 3 In
Individual or Set Individual
IP Rating IP65
Spindle Lock N
Brand Mitutoyo
Mechanical or Digital Digimatic
Data Output Y
Thimble Diameter Measurement 18mm
Case Material Plastic Case
Data Output Cable - 80 inch 05CZA663
Resolution or Graduation .00005 In
Spindle Face Flat
Data Output Cable - 40 inch 05CZA662
Finish Enamel
