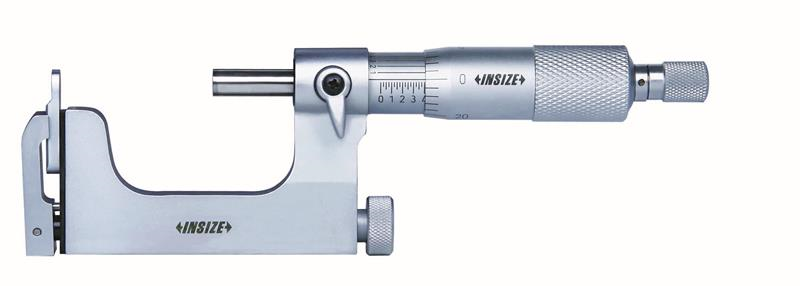

0 Inch - 1 Inch, Graduation 0.0001 Inch Interchangeable Anvil Micrometer

  • Item Code: 3262-2
  • Brand: Insize
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Measure tube thickness, shoulder edge distance, rivet head height, etc.
    • Supplied with flat anvil and rod anvil. Graduation .0001".
    • Ratchet stop. Carbide spindle tip.
    • Setting standards are included (except 0-1").

Tech Specs

Back To Top
Anvil Type Flat, Rod
Spindle Diameter 0.256 in
Type Uni
Data Output Non
Measuring Face Material Carbide
Maximum Measurement 2 in
Graduation 0.0001 in
Rotating Spindle Non-Rotating
Brand Insize
Measurement Type Mechanical
Spindle Type Flat
Thimble Type Ratchet-Friction
Digital Counter None
Minimum Measurement 1 in
