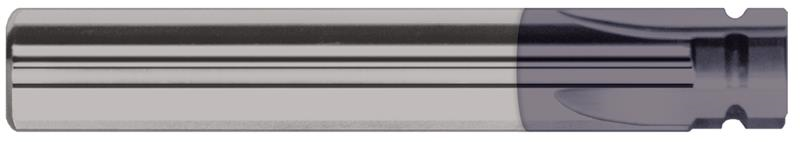

0.0469 in. (3/64) Radius x 0.5000 in. (1/2) Cutter Diameter 4 Flute AlTiN Coated Carbide Concave Radius Endmill

  • Item Code: 32803-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Ground form relieved (can be re-ground without losing radius)
    • 4 Flutes
    • Cutting on OD and radius only (non end-cutting)
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Brand Harvey Tool
Decimal Cutting Diameter 0.5000"
Length of Cut 0.3440"
Coating AlTiN
Fractional Cutting Diameter 1/2"
Overall Length 3"
Material Solid Carbide
Radius Center 0.1719" (11/64)
Shank Diameter 0.5000" (1/2)
Number of Flutes 4
Radius Decimal 0.0469"
Radius Fractional 3/64"
