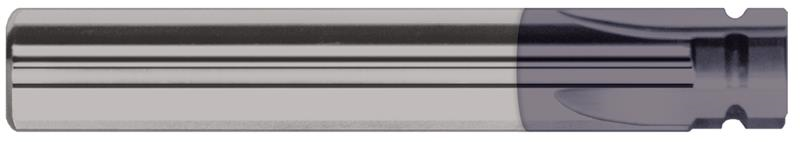

0.0625 in. (1/16) Radius x 0.5000 in. (1/2) Cutter Diameter 4 Flute AlTiN Coated Carbide Concave Radius Endmill

  • Item Code: 32804-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Ground form relieved (can be re-ground without losing radius)
    • 4 Flutes
    • Cutting on OD and radius only (non end-cutting)
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Radius Center 0.1875" (3/16)
Brand Harvey Tool
Shank Diameter 0.5000" (1/2)
Decimal Cutting Diameter 0.5000"
Material Solid Carbide
Number of Flutes 4
Overall Length 3"
Radius Decimal 0.0625"
Coating AlTiN
Fractional Cutting Diameter 1/2"
Length of Cut 0.3750" (3/8)
Radius Fractional 1/16"
