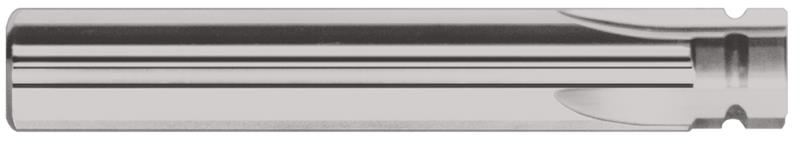

0.1094 in. (7/64) Radius x 0.6250 in. (5/8) Cutter Diameter 4 Flute Carbide Concave Radius End Mill

  • Item Code: 32807-HARVEY
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Ground form relieved (can be re-ground without losing radius)
    • 4 Flutes
    • Cutting on OD and radius only (non end-cutting)
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Fractional Cutting Diameter 5/8"
Radius Center 0.2344" (15/64)
Material Solid Carbide
Brand Harvey Tool
Shank Diameter 0.6250" (5/8)
Coating None
Length of Cut 0.4690"
Number of Flutes 4
Overall Length 3-1/2"
Radius Fractional 7/64"
Decimal Cutting Diameter 0.6250"
Radius Decimal 0.1094"
