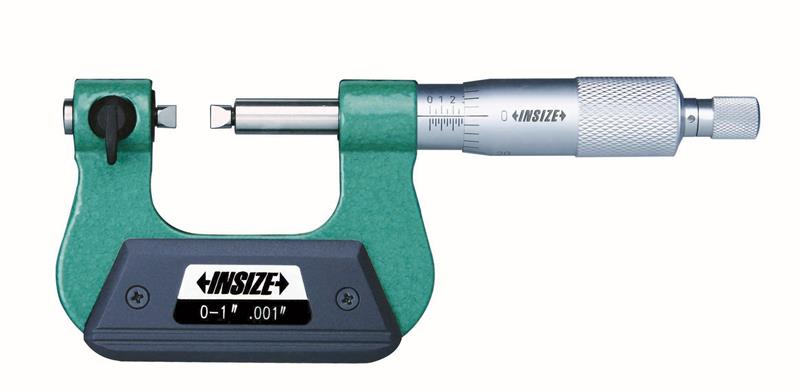

0 Inch - 1 Inch, Graduation 0.001 Inch Screw Thread Micrometer

  • Item Code: 3281-1
  • Brand: Insize
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Measures pitch diameter of screw threads. Graduation .001". Non-rotating spindle.
    • Ratchet stop. Supplied with 60� setting standards (except 0-1").
    • Optional accessory: 55� setting standards (part no. 3281-SP),
    • measuring tips (part no. 7381).

Tech Specs

Back To Top
Maximum Included Angle 60 °
Spindle Type Flat
Digital Counter None
Maximum Measurement 1 in
Brand Insize
Head Diameter 18 mm
Minimum Measurement 0 in
Graduation 0.001 in
Minimum Included Angle 0 °
Type Screw Thread
Data Output Non
Measurement Type Mechanical
Rotating Spindle Non-Rotating
Thimble Type Ratchet Stop
Spindle Diameter 8 mm
