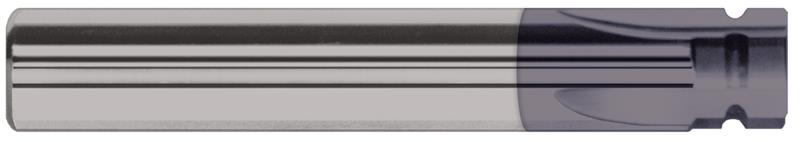

0.1562 in. (5/32) Radius x 0.7500 in. (3/4) Cutter Diameter 4 Flute AlTiN Coated Carbide Concave Radius End Mill

  • Item Code: 32810-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Ground form relieved (can be re-ground without losing radius)
    • 4 Flutes
    • Cutting on OD and radius only (non end-cutting)
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Radius Center 0.2812" (9/32)
Coating AlTiN
Decimal Cutting Diameter 0.7500"
Shank Diameter 0.7500" (3/4)
Overall Length 4"
Fractional Cutting Diameter 3/4"
Brand Harvey Tool
Length of Cut 0.5620" (9/16)
Radius Fractional 5/32"
Radius Decimal 0.1562"
Material Solid Carbide
Number of Flutes 4
