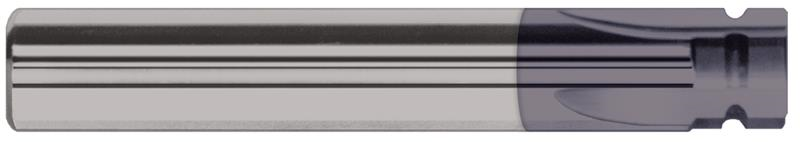

0.1870 in. (3/16) Radius x 1.0000 in. (1) Cutter Diameter 4 Flute AlTiN Coated Carbide Concave Radius End Mill

  • Item Code: 32812-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Ground form relieved (can be re-ground without losing radius)
    • 4 Flutes
    • Cutting on OD and radius only (non end-cutting)
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Number of Flutes 4
Radius Center 0.3120" (5/16)
Radius Fractional 3/16"
Fractional Cutting Diameter 1"
Shank Diameter 0.7500" (3/4)
Material Solid Carbide
Radius Decimal 0.1870"
Coating AlTiN
Length of Cut 0.6240"
Brand Harvey Tool
Decimal Cutting Diameter 1.0000"
Overall Length 3-1/2"
