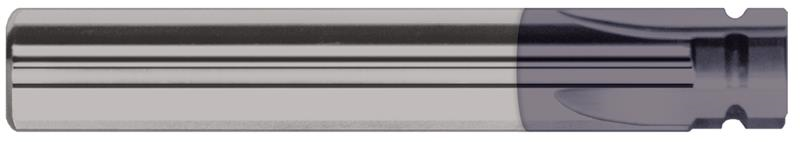

0.2500 in. (1/4) Radius x 1.2500 in. (1-1/4) Cutter Diameter 4 Flute AlTiN Coated Carbide Concave Radius End Mill

  • Item Code: 32816-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Ground form relieved (can be re-ground without losing radius)
    • 4 Flutes
    • Cutting on OD and radius only (non end-cutting)
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Radius Center 0.3750" (3/8)
Overall Length 4"
Decimal Cutting Diameter 1.2500"
Number of Flutes 4
Coating AlTiN
Fractional Cutting Diameter 1-1/4"
Brand Harvey Tool
Length of Cut 0.7500" (3/4)
Material Solid Carbide
Radius Decimal 0.2500"
Radius Fractional 1/4"
Shank Diameter 0.7500" (3/4)
