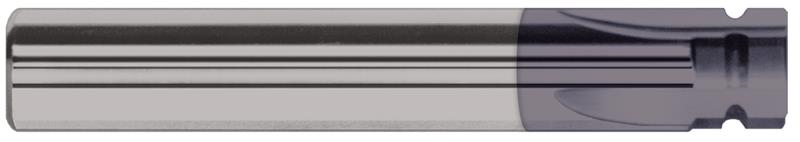

0.0394 in. Radius x 0.5000 in. (1/2) Cutter Diameter 4 Flute AlTiN Coated Carbide Concave Radius Endmill

  • Item Code: 3281M-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Ground form relieved (can be re-ground without losing radius)
    • 4 Flutes
    • Cutting on OD and radius only (non end-cutting)
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Radius Decimal 0.0394"
Fractional Cutting Diameter 1/2"
Material Solid Carbide
Coating AlTiN
Radius Center 0.1644"
Decimal Cutting Diameter 0.5000"
Number of Flutes 4
Overall Length 3"
Brand Harvey Tool
Length of Cut 0.3290"
Shank Diameter 0.5000" (1/2)
