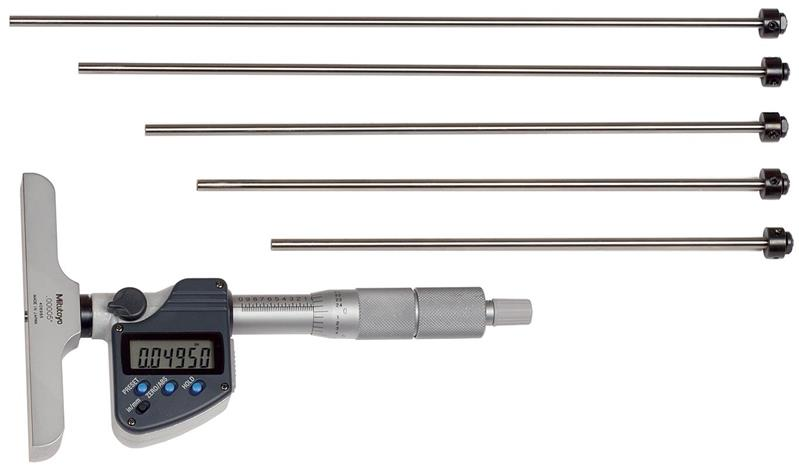

0-6 Inch, 0.00005 Inch, Digimatic Depth Micrometer, 6 interchangeable rods (1 Inch/25.4mm increments), Rod Clamp, 4 Inch Base, With SPC Data Output, Ratchet Stop

  • Item Code: 329-350-30
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Provides a wide measuring range.
    • The rod length can be adjusted in 1 In or 25mm increments.
    • SPC data output.

Tech Specs

Back To Top
Case Part Number 04MZA093
Mechanical or Digital Digimatic
Primary Measuring Range Lower - Inch 0 In
Primary Measuring Range Upper - Inch 6 In
Spindle Lock Y
Base Flatness .00008 In
Brand Mitutoyo
Contact Point Diameter .157 In
Contact Point Flatness .00001 in
Data Output Cable - 40 inch 05CZA662
Thimble Diameter Measurement 18.3mm
Data Output Y
Data Output Cable - 80 inch 05CZA663
Parallelism [.00016 + (.00004 x R/2] In
Primary Measuring Range Lower - Metric 0mm
Width .63 In (Base)
Accuracy ±.00012 In
Individual or Set Individual
Range 0 - 6 In/0 - 152.4mm
Case Material Plastic Case
Length Measurement 4 In (Base)
Primary Measuring Range Upper - Metric 152.4mm
Resolution or Graduation .00005 In
Primary (Outside Diameter) Contact Point Material Carbon steel
