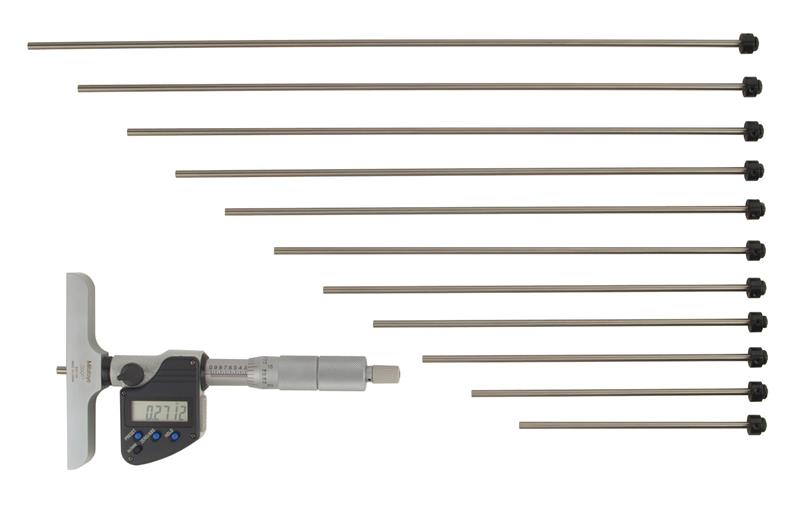

0-12 Inch, 0.00005 Inch, Digimatic Depth Micrometer, 12 interchangeable rods (1 Inch/25.4mm increments), Rod Clamp, 4 Inch Base, With SPC Data Output, Ratchet Stop

  • Item Code: 329-351-30
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Provides a wide measuring range.
    • The rod length can be adjusted in 1 In or 25mm increments.
    • SPC data output.

Tech Specs

Back To Top
Range 0 - 12 In / 0 - 304.8mm
Primary Measuring Range Lower - Metric 0mm
Base Flatness .00008 In
Brand Mitutoyo
Contact Point Flatness .00001 in
Mechanical or Digital Digimatic
Primary (Outside Diameter) Contact Point Material Carbon steel
Primary Measuring Range Lower - Inch 0 In
Primary Measuring Range Upper - Inch 12 In
Data Output Y
Data Output Cable - 80 inch 05CZA663
Parallelism [.00016 + (.00004 x R/2] In
Thimble Diameter Measurement 18.3mm
Individual or Set Individual
Primary Measuring Range Upper - Metric 304.8mm
Contact Point Diameter .157 In
Accuracy ±.00012 In
Case Part Number 04MZA093
Case Material Plastic Case
Resolution or Graduation .00005 In
Data Output Cable - 40 inch 05CZA662
Length Measurement 4 In (Base)
Spindle Lock Y
Width .63 In (Base)
