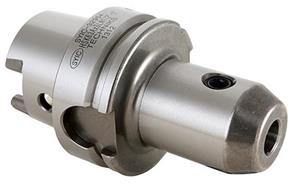

HSK 63A, 1/2 Inch Bore Inside Diameter End Mill Holder
- Item Code: 32954-TECHNIKS
- Brand: Techniks
- Unit Size: 1
Description
Techniks End Mill Holders are precision machined to an Industry Leading H5 standard I.D. hole tolerance. Techniks End Mills are balanced to 15,000 RPM to save spindle bearing life and the Taper is ground to AT3 standard for maximum spindle contact. Each holder is lab certified with an individual report to ensure quality.
Tech Specs
Back To Top| Nose Diameter (in) | 1.38 |
|---|---|
| Style | Single End |
| Gage Length (mm) | 76.2 |
| Bore Inside Diameter (mm) | 12.7 |
| Type | End Mill Holder |
| Overall Length (in) | 4.26 |
| Brand | Techniks |
| Material | 8620 Steel |
| Taper Type | HSK63A |
| Bore Inside Diameter (in) | 0.5 |
| Gage Length (in) | 3 |
| Nose Diameter (mm) | 35.1 |
| Overall Length (mm) | 108.2 |
