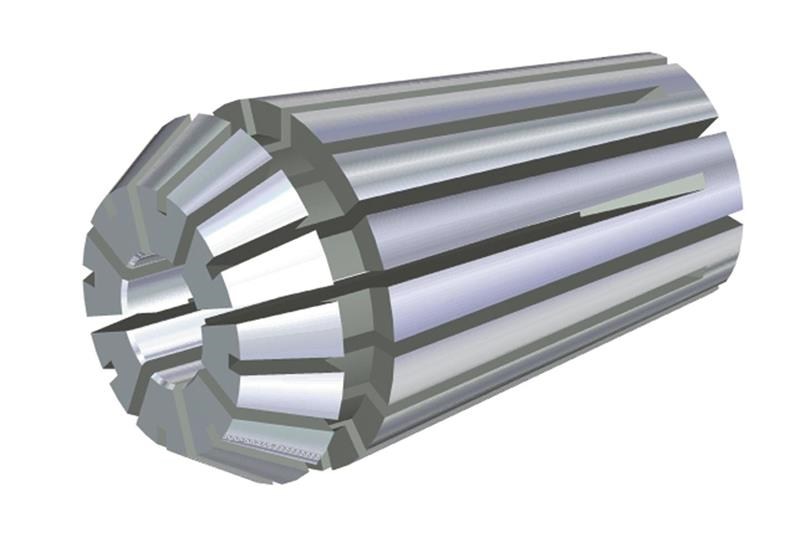

6-7 mm, 0.2362 to 0.2756 Inch Collect Capacity, Series ER32 ER Collet
- Item Code: 32ER070M
- Brand: WIDIA-Erickson
- Unit Size: 1
Description
Series ER32
Single-Angle Standard Collet
Features
Back To Top- Collets and Sleeves
Tech Specs
Back To Top| Body Diameter | 33.00 MM |
|---|---|
| Clamping Diameter (Decimal) | 0.2760 Inch |
| Clamping Diameter (Metric) | 7.00 MM |
| Collet Capacity | 6.00 - 7.00 MM |
| Brand | WIDIA-Erickson |
| Clamping Hole Length | 25.00 MM |
| Product Name | Collet |
| Unit of Measure | Metric |
| Overall Length | 40.00 MM |
| Shank Style | Taper |
| Type | Single Angle |
