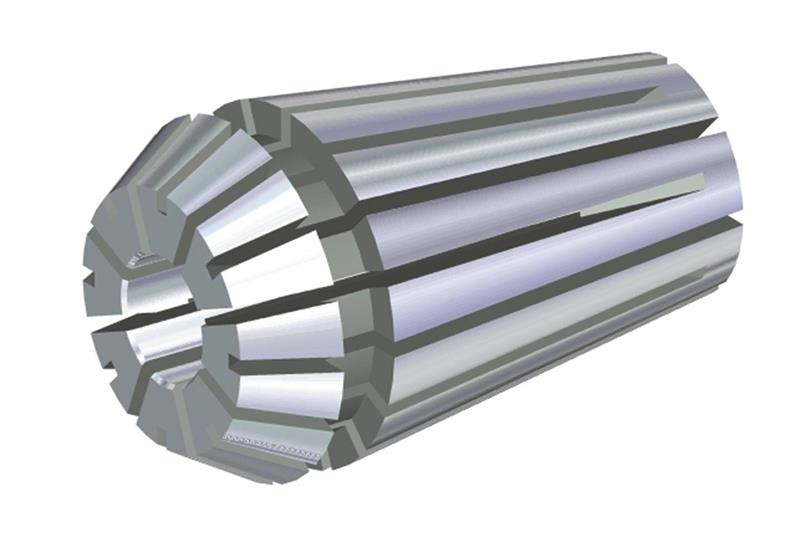

3/4 Inch, 0.71 to 0.75 Inch Collect Capacity, Series ER32 ER Collet
- Item Code: 32ER0750
- Brand: WIDIA-Erickson
- Unit Size: 1
Description
Series ER32
Single-Angle Standard Collet
Features
Back To Top- Collets and Sleeves
Tech Specs
Back To Top| Clamping Diameter (Decimal) | 0.7500 Inch |
|---|---|
| Clamping Diameter (Fractional) | 3/4 Inch |
| Clamping Diameter (Metric) | 19.05 MM |
| Collet Capacity | 0.7100 - 0.7500 Inch |
| Product Name | Collet |
| Body Diameter | 1.2990 Inch |
| Type | Single Angle |
| Unit of Measure | Inch |
| Overall Length | 1.5750 Inch |
| Shank Style | Taper |
| Clamping Hole Length | 1.5750 Inch |
| Brand | WIDIA-Erickson |
