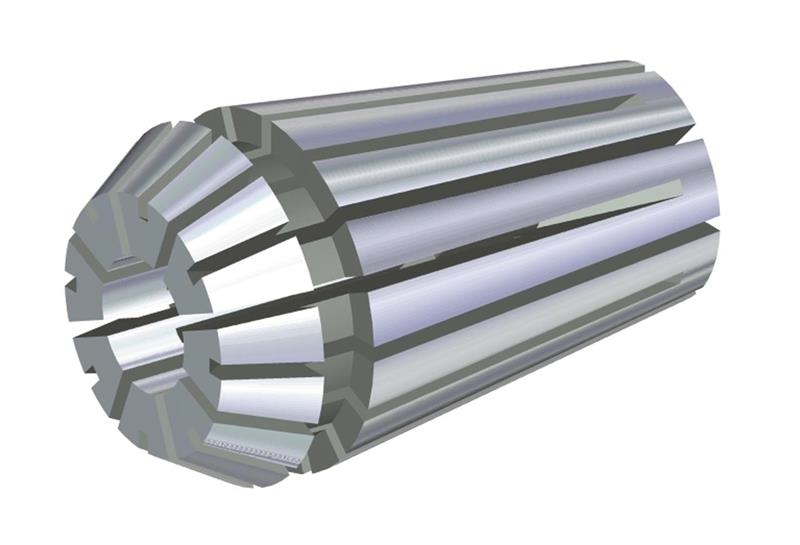

6mm, Series ER32, ER Hand Tap Collet
- Item Code: 32ERTC060049M
- Brand: WIDIA-Erickson
- Unit Size: 1
Description
Series ER32
Single-Angle Standard Collet
Features
Back To Top- Collets and Sleeves
Tech Specs
Back To Top| Clamping Hole Length | 18.00 MM |
|---|---|
| Type | Single Angle |
| Clamping Diameter (Decimal) | 0.2362 Inch |
| Product Name | Collet |
| Unit of Measure | Metric |
| Shank Style | Taper |
| Square Size | 4.90 MM |
| Overall Length | 40.00 MM |
| Brand | WIDIA-Erickson |
| Clamping Diameter (Metric) | 6.00 MM |
| Body Diameter | 32.80 MM |
