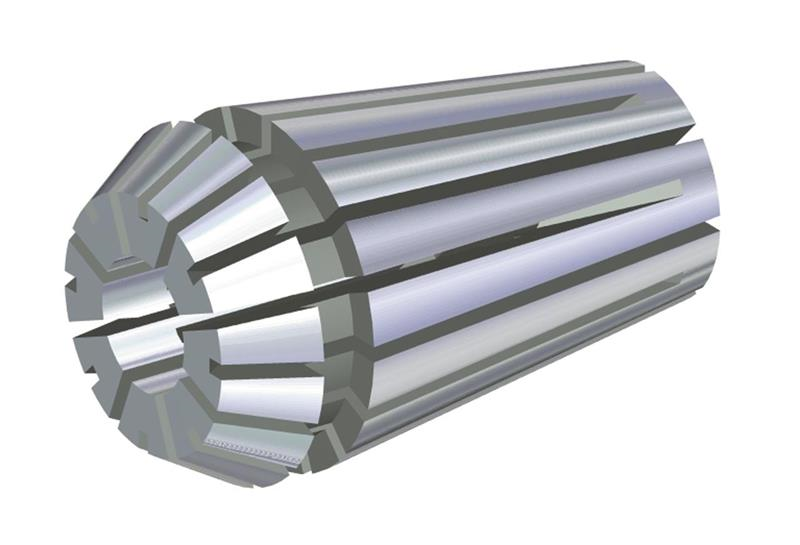

8mm, Series ER32, M8 Tap Size, ER Hand Tap Collet
- Item Code: 32ERTC080062M
- Brand: WIDIA-Erickson
- Unit Size: 1
Description
Series ER32
Single-Angle Standard Collet
Features
Back To Top- Collets and Sleeves
Tech Specs
Back To Top| Body Diameter | 32.80 MM |
|---|---|
| Clamping Diameter (Decimal) | 0.3150 Inch |
| Clamping Diameter (Metric) | 8.00 MM |
| Clamping Hole Length | 22.00 MM |
| Overall Length | 40.00 MM |
| Square Size | 6.20 MM |
| Product Name | Collet |
| Unit of Measure | Metric |
| Brand | WIDIA-Erickson |
| Shank Style | Taper |
| Type | Single Angle |
