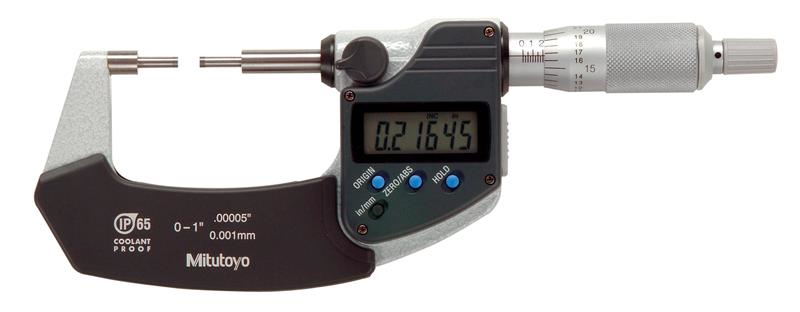

0-1 Inch, 0.00005 Inch, Digimatic Spline Micrometer, 3mm Diameter Spline, Carbide Steel Tip, With SPC Data Output, Ratchet Stop

  • Item Code: 331-351-30
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • The anvil and spindle have a small diameter for measuring splined shafts, slots, and keyways.
    • With ratchet stop for constant force.

Tech Specs

Back To Top
Case Material Plastic Case
Primary Measuring Range Upper - Inch 1 In
Contact Point Diameter 6.35mm
Primary Measuring Range Lower - Inch 0 In
Spindle Face Flat
Data Output Y
Data Output Cable - 80 inch 05CZA663
IP Rating IP65
Resolution or Graduation .00005 In
Thimble Diameter Measurement 18mm
Brand Mitutoyo
Clutch Ratchet Stop
Accuracy ±.0001 In
Case Part Number 04MAA214
Data Output Cable - 40 inch 05CZA662
Mechanical or Digital Digimatic
Range 0 - 1 In/0 - 25.4mm
Spindle Lock Y
Parallelism [.00008In+.00004In(l/4In)]
Primary (Outside Diameter) Contact Point Material Carbide
Contact Point Flatness .000012 In
Finish Enamel
Individual or Set Individual
