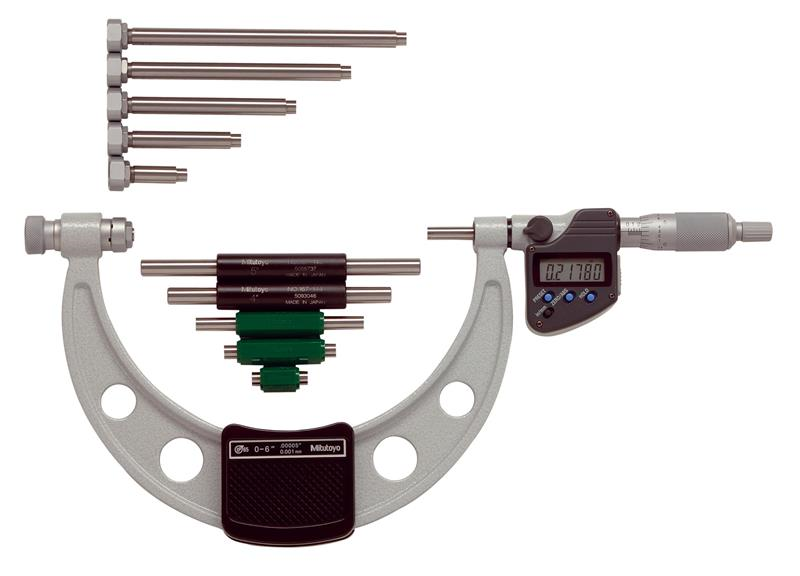

0-6 Inch, 0.00005 Inch, IP65 DigimaticInterchangeable Anvil Micrometer, With 6 Anvils and 5 Standards, With SPC Data Output, Ratchet Stop

  • Item Code: 340-351-30
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Wide measuring range with interchangeable anvils.
    • Suplied with zero-setting standards bar for each range.
    • Has SPC data output.

Tech Specs

Back To Top
Case Part Number 475485
Parallelism [.00008In+.00004In(l/4In)]
Range 0 - 6 In/0 - 152.4mm
Contact Point Diameter 6.35mm
Case Material Wooden Case
Clutch Ratchet Stop
IP Rating IP65
Resolution or Graduation .00005 In
Spindle Lock N
Mechanical or Digital Mechanical
Data Output Y
Data Output Cable - 80 inch 05CZA663
Thimble Diameter Measurement 18mm
Primary Measuring Range Lower - Inch 0 In
Primary Measuring Range Upper - Inch 6 In
Spindle Face Flat
Primary (Outside Diameter) Contact Point Material carbide
Primary Measuring Range Lower - Metric 0mm
Finish Enamel
Individual or Set Individual
Accuracy ±.00016 In + .00004 In
Brand Mitutoyo
Data Output Cable - 40 inch 05CZA662
Primary Measuring Range Upper - Metric 152.4mm
