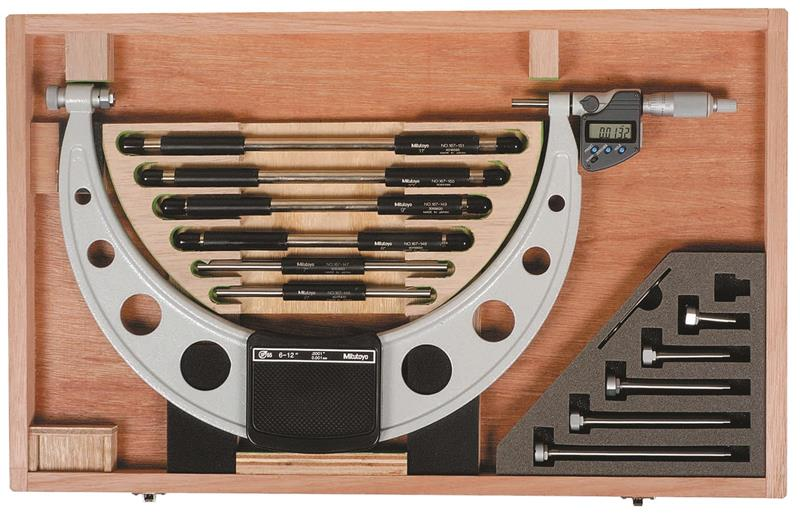

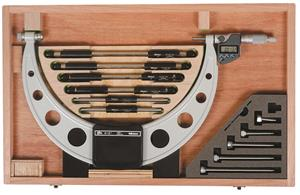

6 Inch - 12 Inch, 0.00005 Inch, P65 DigimaticInterchangeable Anvil Micrometer, With 6 Anvils and 6 Standards, With SPC Data Output, Ratchet Stop

  • Item Code: 340-352-30
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Wide measuring range with interchangeable anvils.
    • Suplied with zero-setting standards bar for each range.
    • Has SPC data output.

Tech Specs

Back To Top
Accuracy ±.00016 In + .00004 In
Primary Measuring Range Lower - Inch 0 In
Range 6 - 12 In/152.4 - 304.8mm
Contact Point Diameter 6.35mm
Finish Enamel
Case Material Wooden Case
Clutch Ratchet Stop
IP Rating IP65
Resolution or Graduation .00005 In
Spindle Lock N
Case Part Number 475485
Data Output Y
Data Output Cable - 40 inch 05CZA662
Data Output Cable - 80 inch 05CZA663
Primary Measuring Range Lower - Metric 152.4mm
Thimble Diameter Measurement 18mm
Parallelism [.00008In+.00004In(l/4In)]
Primary (Outside Diameter) Contact Point Material carbide
Primary Measuring Range Upper - Inch 6 In
Spindle Face Flat
Brand Mitutoyo
Mechanical or Digital Mechanical
Individual or Set Individual
Primary Measuring Range Upper - Metric 304.8mm
