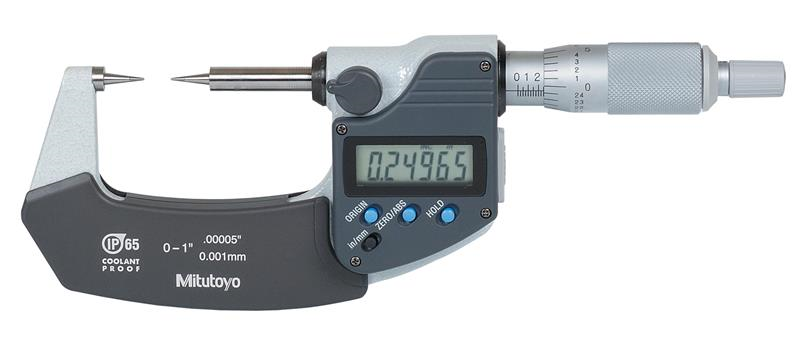

0-1 Inch, 0.00005 Inch, Digimatic Point Micrometer, 15 Degree Point, With SPC Data Output, Ratchet Stop

  • Item Code: 342-351-30
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Pointed spindle and anvil for measuring the web thickness of drills, small grooves, keyways, and other hard-to-reach dimensions.
    • 15 degree and 30 degree measuring points are available.

Tech Specs

Back To Top
Accuracy ±.0001 In
Range 0 - 1 In/0 - 25.4mm
Case Part Number 04MAA214
IP Rating IP65
Primary Measuring Range Lower - Inch 0 In
Resolution or Graduation .00005 In
Primary (Outside Diameter) Contact Point Material Hardened Steel
Spindle Face Point
Case Material Plastic Case
Clutch Ratchet Stop
Data Output Y
Finish Enamel
Brand Mitutoyo
Mechanical or Digital Digimatic
Contact Point Diameter 6.35mm
Data Output Cable - 40 inch 05CZA662
Data Output Cable - 80 inch 05CZA663
Spindle Lock Y
Thimble Diameter Measurement 18mm
Individual or Set Individual
Primary Measuring Range Upper - Inch 1 In
