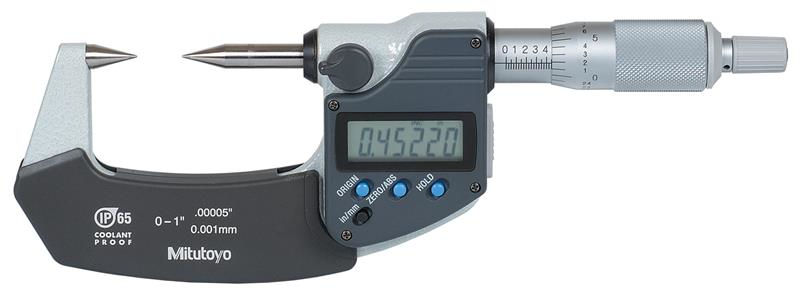

0-1 Inch/0-25.4mm, .00005 Inch/0.001mm Digimatic Point Micrometer, 30 Degree Point, Ratchet Stop
- Item Code: 342-361-30
- Brand: Mitutoyo
- Unit Size: 1
Description
With SPC Data Output
Features
Back To Top- Pointed spindle and anvil for measuring the web thickness of drills, small grooves, keyways, and other hard-to-reach dimensions.
- 15 degree and 30 degree measuring points are available.
Tech Specs
Back To Top| Contact Point Diameter | 6.35mm |
|---|---|
| Finish | Enamel |
| Mechanical or Digital | Digimatic |
| Spindle Lock | Y |
| Data Output | Y |
| Data Output Cable - 40 inch | 05CZA662 |
| Thimble Diameter Measurement | 18mm |
| Brand | Mitutoyo |
| Primary Measuring Range Upper - Inch | 1 In |
| Accuracy | ±.0001 In |
| Primary (Outside Diameter) Contact Point Material | Hardened Steel |
| Range | 0 - 1 In/0 - 25.4mm |
| Data Output Cable - 80 inch | 05CZA663 |
| Individual or Set | Individual |
| Spindle Face | Point |
| Case Material | Plastic Case |
| Clutch | Ratchet Stop |
| Primary Measuring Range Lower - Inch | 0 In |
| Resolution or Graduation | .00005 In |
| Case Part Number | 04MAA214 |
| IP Rating | IP65 |
