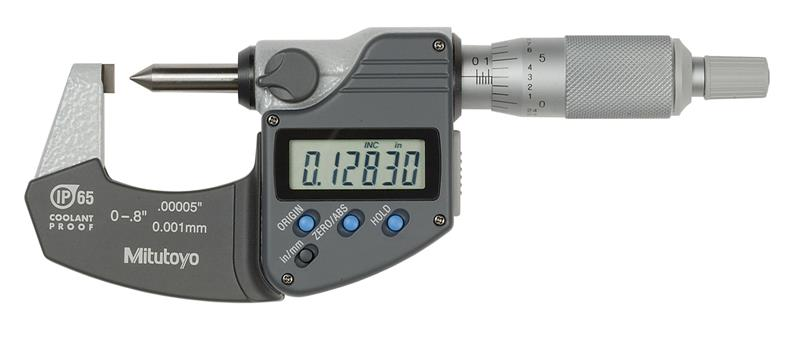

0-0.8 Inch(0-20mm), .00005 Inch(0.001mm) Digimatic Crimp Height Micrometer, 60 Degree Point, With SPC Data Output, Ratchet Stop
- Item Code: 342-371-30
- Brand: Mitutoyo
- Unit Size: 1
- IP54/65 water/dust protection.
- With Ratchet Stop for constant force.
| Primary Measuring Range Upper - Inch |
0.8 In |
| Range |
0 - .8 In/0 - 20mm |
| Accuracy |
±.00015 In |
| Case Material |
Plastic Case |
| Spindle Face |
Point |
| Contact Point Diameter |
6.35mm |
| Primary (Outside Diameter) Contact Point Material |
Hardened Steel |
| Individual or Set |
Individual |
| IP Rating |
IP65 |
| Resolution or Graduation |
.00005 In |
| Brand |
Mitutoyo |
| Case Part Number |
04MAA213 |
| Data Output |
Y |
| Data Output Cable - 80 inch |
05CZA663 |
| Thimble Diameter Measurement |
18mm |
| Finish |
Enamel |
| Data Output Cable - 40 inch |
05CZA662 |
| Mechanical or Digital |
Digimatic |
| Primary Measuring Range Lower - Inch |
0 In |
| Spindle Lock |
Y |
| Clutch |
Ratchet Stop |
