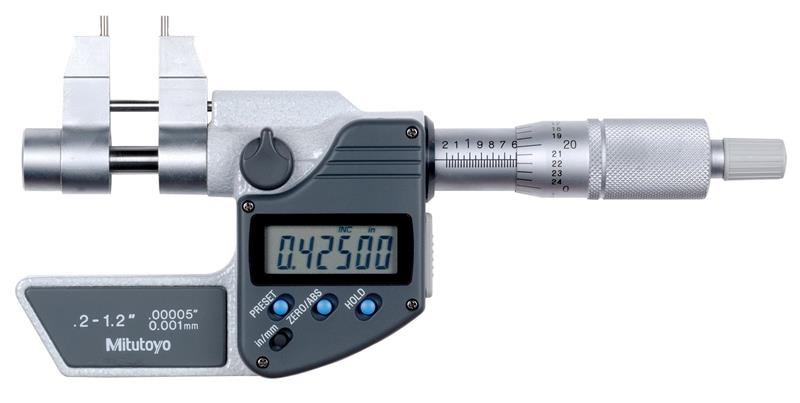

.2-1.2 Inch/5-30mm, .00005 Inch/0.001mm Digimatic Caliper Jaw Type Micrometer, Carbide Steel Tip, Locking Clamp, Ratchet Stop

  • Item Code: 345-350-30
  • Brand: Mitutoyo
  • Unit Size: 1

Description

With SPC Data Output

Features Tech Specs

Features

Back To Top
    • Caliper type jaws are made of high-grade, tool steel
    • Locking clamp for positive locking of spindle
    • Satin Chrome finish.

Tech Specs

Back To Top
Case Part Number 04MAA174
Primary Measuring Range Lower - Inch .2 In
Primary Measuring Range Lower - Metric 5mm
Primary Measuring Range Upper - Inch 1.2 In
Primary Measuring Range Upper - Metric 30mm
Range .2 - 1.2 In / 5-30mm
Data Output Cable - 40 inch 05CZA662
Mechanical or Digital Digimatic
Spindle Lock N
Primary (Outside Diameter) Contact Point Material Carbide
Case Material Plastic Case
Individual or Set Individual
Resolution or Graduation .00005 In
Brand Mitutoyo
Data Output Cable - 80 inch 05CZA663
Accuracy ±.00025 In
Data Output Y
