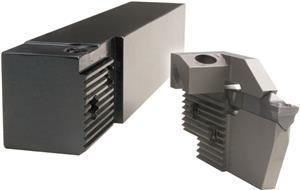

3/32 Inch (2.5mm) Width of Cut x 3/4 Inch Depth of Cut Right Hand Seat 2B SLS Blade
- Item Code: 348105-W
- Brand: WIDIA
- Unit Size: 1
Description
WMT™ Turning, Grooving, and Cut-Off - SLS Cartridge
Tech Specs
Back To Top| Adapter Style Machine Side | WID/MAN Serrated Blade MT |
|---|---|
| Catalog Groove Width (Inch) | 0.0937 |
| Catalog Groove Width (mm) | 2.380 |
| Cutting Depth (Inch) | 0.7520 |
| Cutting Depth (Metric) | 19.100 |
| Cutting Height (Inch) | 0.9752 |
| Cutting Height (Metric) | 24.770 |
| Tool Length (Fraction) | 2.0500 |
| Tool Length (Inch) | 2.0500 |
| Tool Length (Metric) | 52.070 |
| Tool Overall Length (Inch) | 2.0500 |
| Tool Overall Length (mm) | 52.070 |
| Body Material Group | S |
| Product Type | Modular Blade |
| Adapter Style Machine Side-EPP | KMC-29WID/MAN SerratedBlade Mt |
| Clamping Type | Y - A2/A3/A4/PG/TG Clamping |
| Lead Angle ANSI | 0.000 |
| Number of Inserts | 1 |
| Brand | WIDIA |
| Adapter Type Machine Side-EPP | KMC - Cartridge Mount Kenna |
| Lead Angle ISO | 90.000 |
| Units of Tool (Extract) | MM - Metric |
| Adapter Type Machine Side | KMTL Cartridge Mount |
