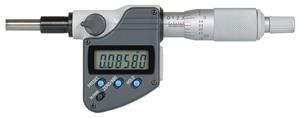

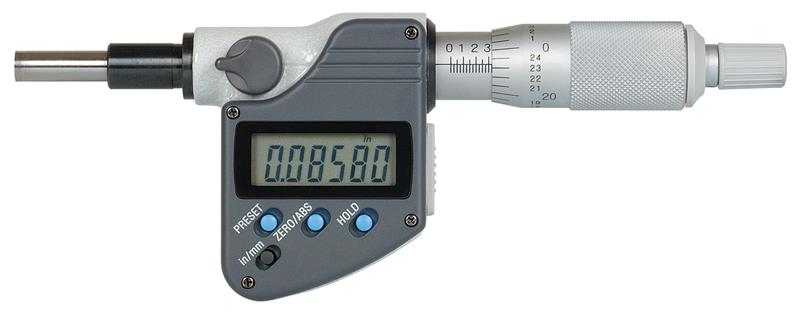

0-1 Inch/0-25.4mm, .00005 Inch/0.001mm, Digimatic Micrometer Head, .375 Inch Diameter Plain Stem, Flat Carbide Tipped Spindle Face, Ratchet Stop

  • Item Code: 350-351-30
  • Brand: Mitutoyo
  • Unit Size: 1

Description

With SPC Data Output

Features Tech Specs

Features

Back To Top
    • SPC output
    • With Ratchet Stop for constant force.

Tech Specs

Back To Top
Mechanical or Digital Digital
Case Part Number 04MAA174
Contact Point Diameter 6.35mm
Primary Measuring Range Upper - Inch 1 In
Primary (Outside Diameter) Contact Point Material Carbide
Brand Mitutoyo
Clutch Ratchet Stop
Data Output Y
Data Output Cable - 80 inch 05CZA663
Spindle Lock N
Stem Diameter Measurement .375 In
Thimble Diameter Measurement 18mm
Case Material Plastic Case
Primary Measuring Range Lower - Inch 0 In
Range 0 - 1 In
Spindle Face Flat
Accuracy ±.0001 In
IP Rating IP65
Resolution or Graduation .0005 In
Finish Enamel
Individual or Set Individual
Measuring Force 5-10N
Data Output Cable - 40 inch 05CZA662
