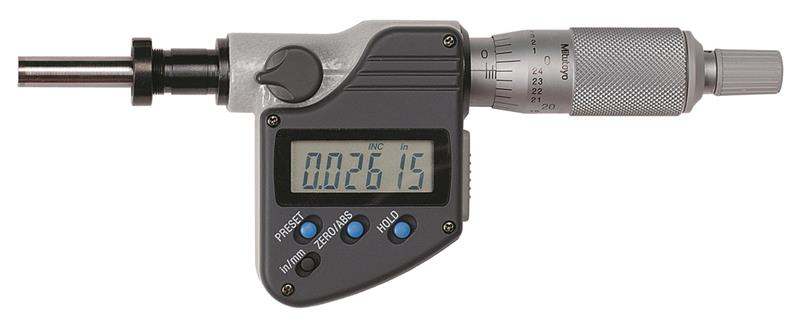

0-1 Inch/0-25.4mm, .00005 Inch/0.001mm, Digimatic Micrometer Head, .375 Inch Diameter Stem with Clamp Nut, Flat Carbide Tipped Spindle Face, Ratchet Stop

  • Item Code: 350-352-30
  • Brand: Mitutoyo
  • Unit Size: 1

Description

With SPC Data Output

Features Tech Specs

Features

Back To Top
    • SPC output
    • With Ratchet Stop for constant force.

Tech Specs

Back To Top
Clamp Nut Y
Contact Point Flatness .000024 In
Primary Measuring Range Lower - Inch 0 In
Range 0 - 1 In
Resolution or Graduation .00005 In
Spindle Lock N
Contact Point Diameter 6.35mm
Data Output Cable - 40 inch 05CZA662
Data Output Cable - 80 inch 05CZA663
Thimble Diameter Measurement 18mm
Accuracy ±.0001 In
Primary (Outside Diameter) Contact Point Material Carbide
Case Material Plastic Case
Spindle Face Flat
Case Part Number 04MAA174
Data Output Y
Finish Enamel
Individual or Set Individual
Measuring Force 5-10N
Mechanical or Digital Digital
Primary Measuring Range Upper - Inch 1 In
Brand Mitutoyo
Stem Diameter Measurement .375 In
