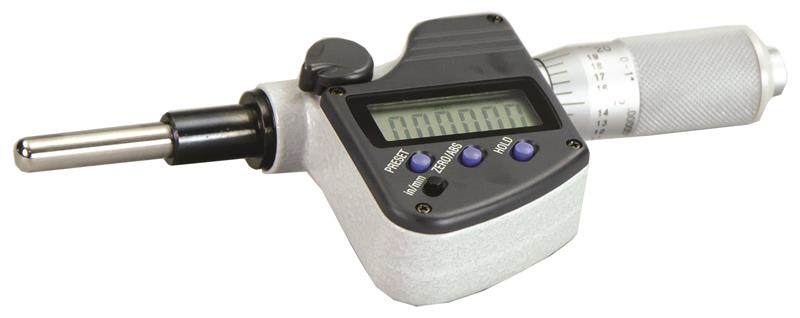

0-1 Inch/0-25.4mm, .00005 Inch/0.001mm, IP65 Digimatic Micrometer Head, .375 Inch Diameter Plain Stem, Spherical (SR4) Spindle Face,

  • Item Code: 350-357-30
  • Brand: Mitutoyo
  • Unit Size: 1

Description

With SPC Data Output

Features Tech Specs

Features

Back To Top
    • Dust and water protection level IP65.
    • Preset, inch/mm conversion.
    • SPC data output.

Tech Specs

Back To Top
Mechanical or Digital Digital
Brand Mitutoyo
Primary Measuring Range Lower - Inch 0 In
Contact Point Flatness .000024 In
Data Output Cable - 40 inch 05CZA662
Case Material Plastic Case
Individual or Set Individual
Measuring Force 5-10N
Primary Measuring Range Upper - Inch 1 In
Resolution or Graduation .00005 In
Spindle Face Flat
Clamp Nut Y
Finish Enamel
Primary (Outside Diameter) Contact Point Material Carbide
Primary Measuring Range Lower - Metric 0
Range 0 - 1 In / 0 -25.4mm
Spindle Lock N
Stem Diameter Measurement .375 In
Accuracy ±.0001 In
Case Part Number 04MAA174
Data Output Y
Contact Point Diameter 6.35mm
Data Output Cable - 80 inch 05CZA663
Primary Measuring Range Upper - Metric 25.4
Thimble Diameter Measurement 18mm
